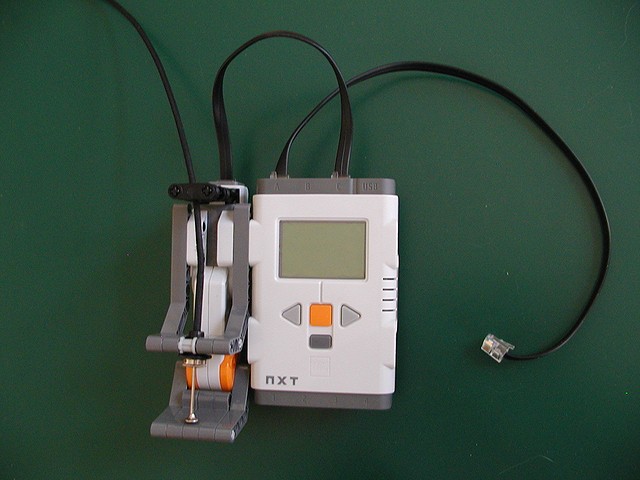

Attach the shutter to the NXT controller |
![](assemble_1_small.jpg) |

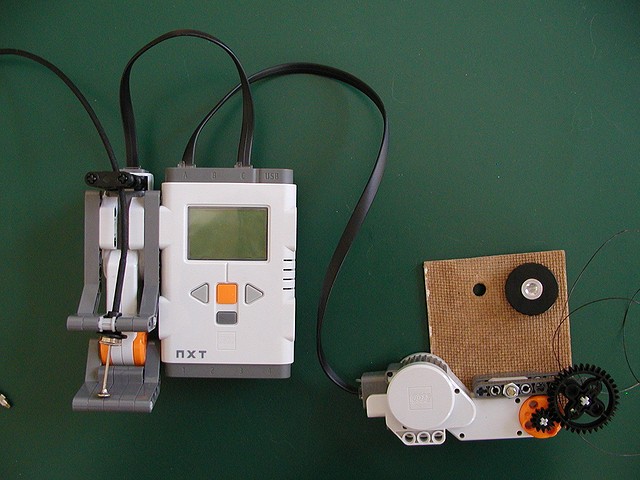

Connect the motor to the NXT controller |
![](assemble_2_small.jpg) |
This is the panohead used for the robot: A Novoflex VR
system with an additional panorama plate for easy tilting of the
camera. |
![](assemble_3_small.jpg) |

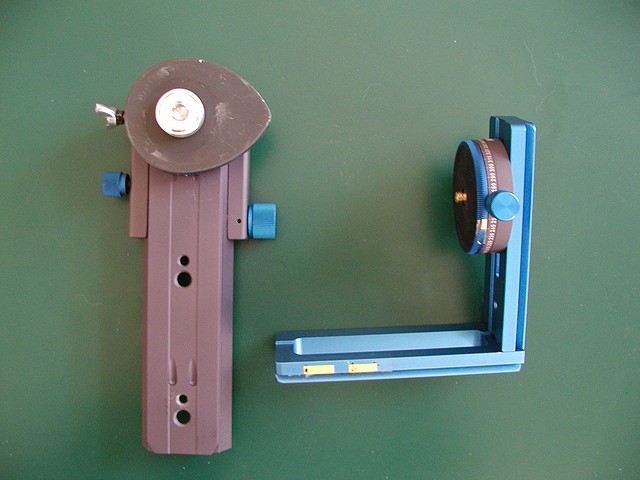

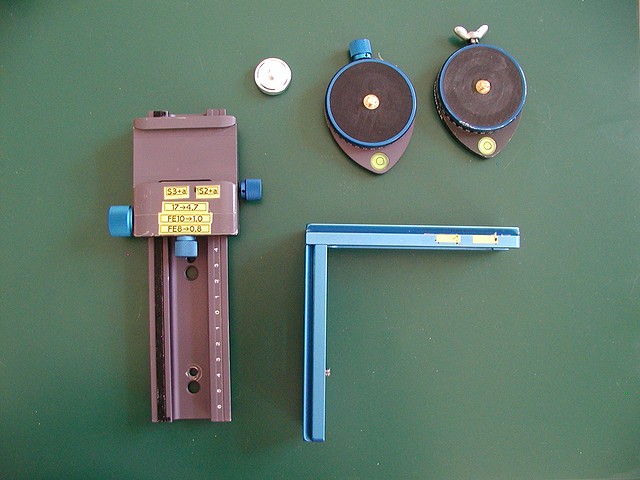

Head with pre-assembled panorama plates. Please note the
small adapter srew. This screw will fit in the hole of our big
disk and enable tightening of head and disk at once. |
![](assemble_4_small.jpg) |

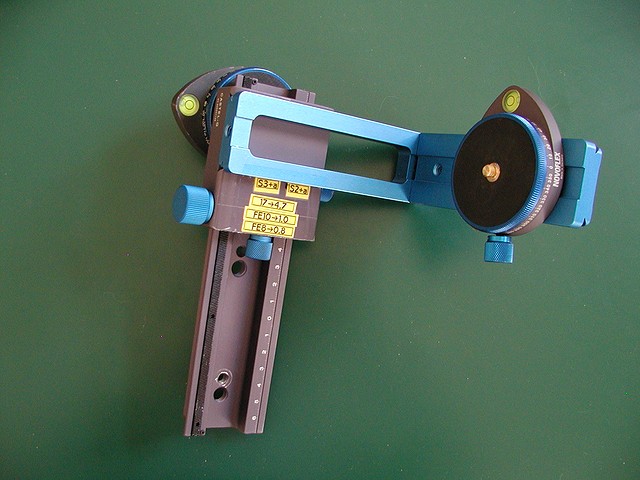

Panohead readily pre-assembled. |
![](assemble_5_small.jpg) |

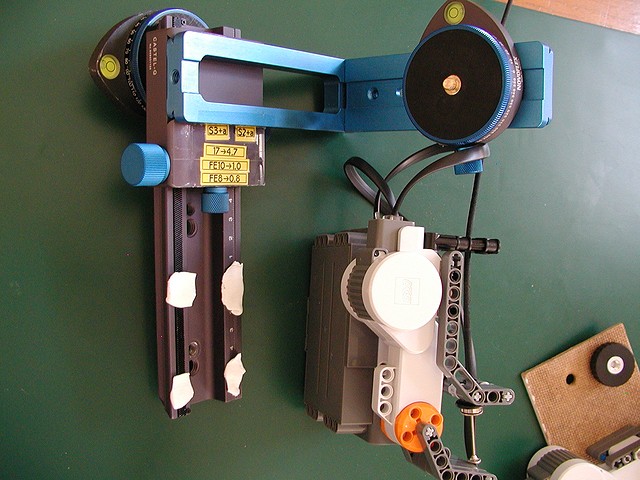

The NXT controller is attached by simply using some DIY gum. |

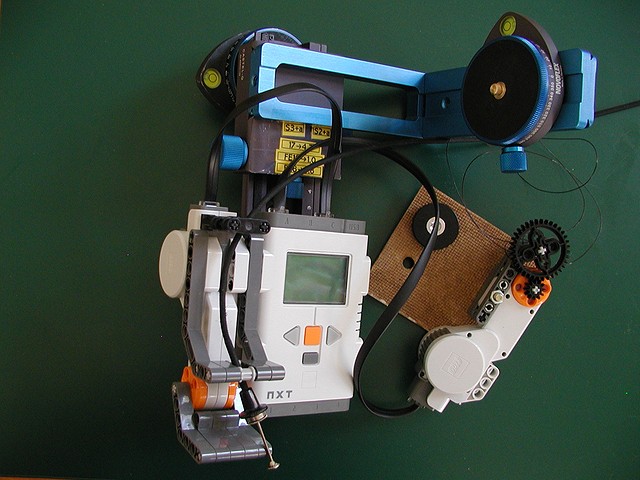

![](assemble_6_small.jpg) ![](assemble_7_small.jpg) |

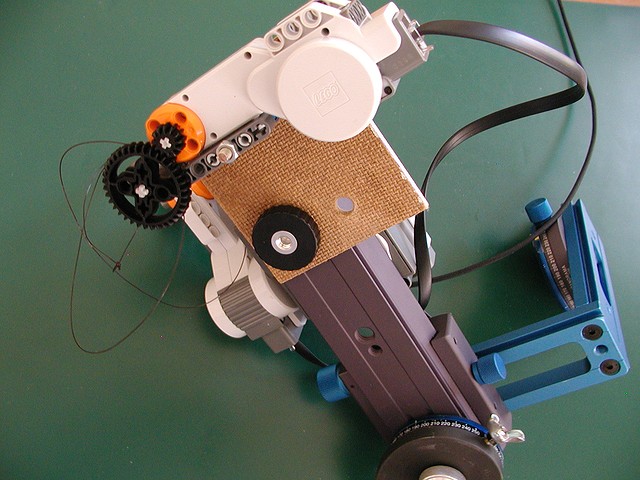

The motor attached to the bottom of the panohead. |
![](assemble_8_small.jpg) |

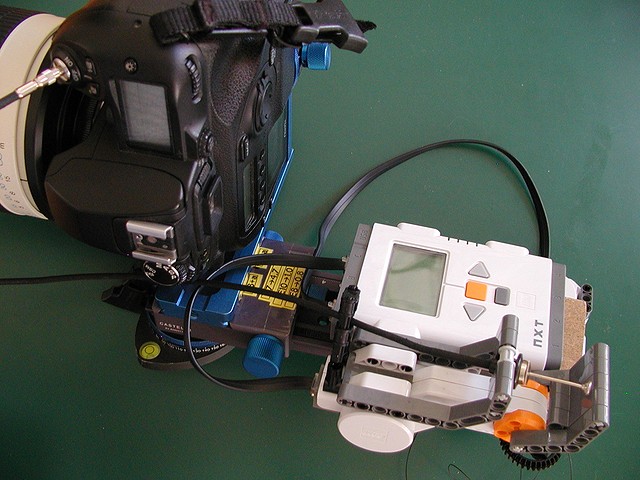

Robot readily mounted for use. The only thing left over is
to attached the head on the tripod with the disk in between... |
![](assemble_9_small.jpg) |
